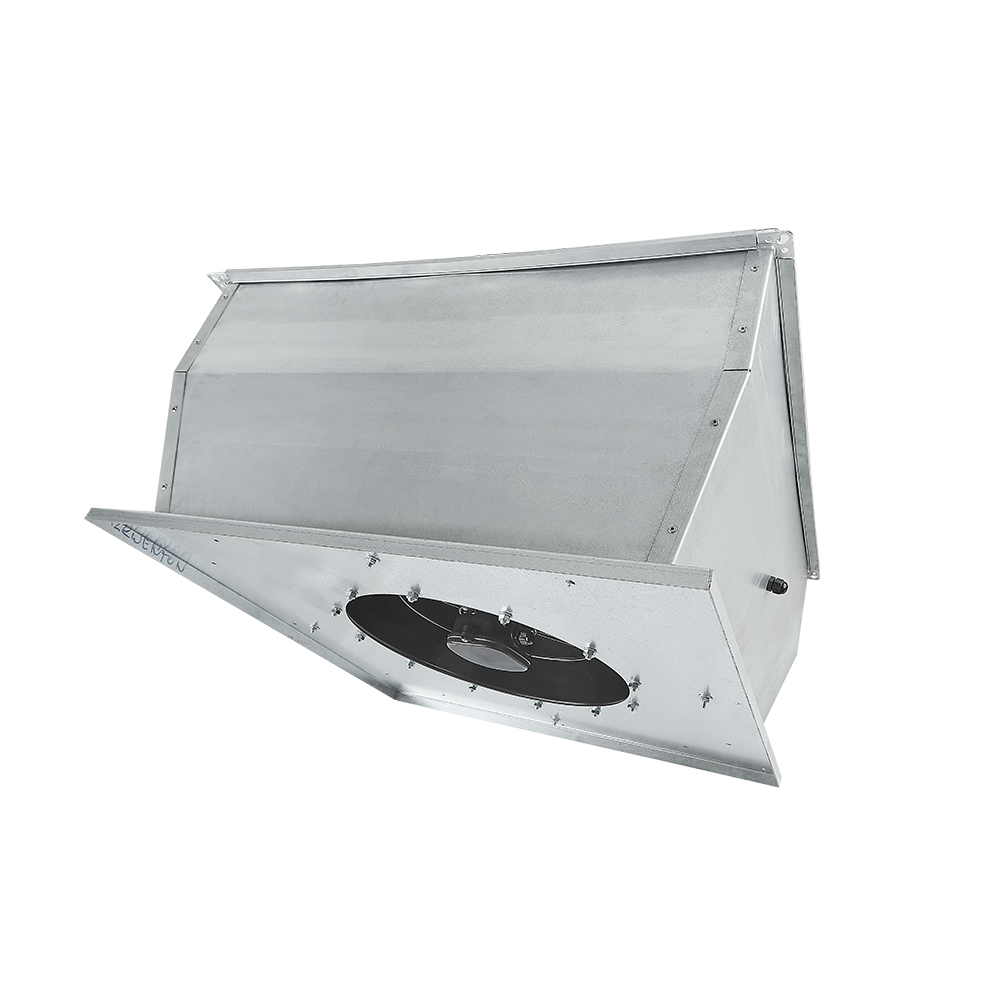

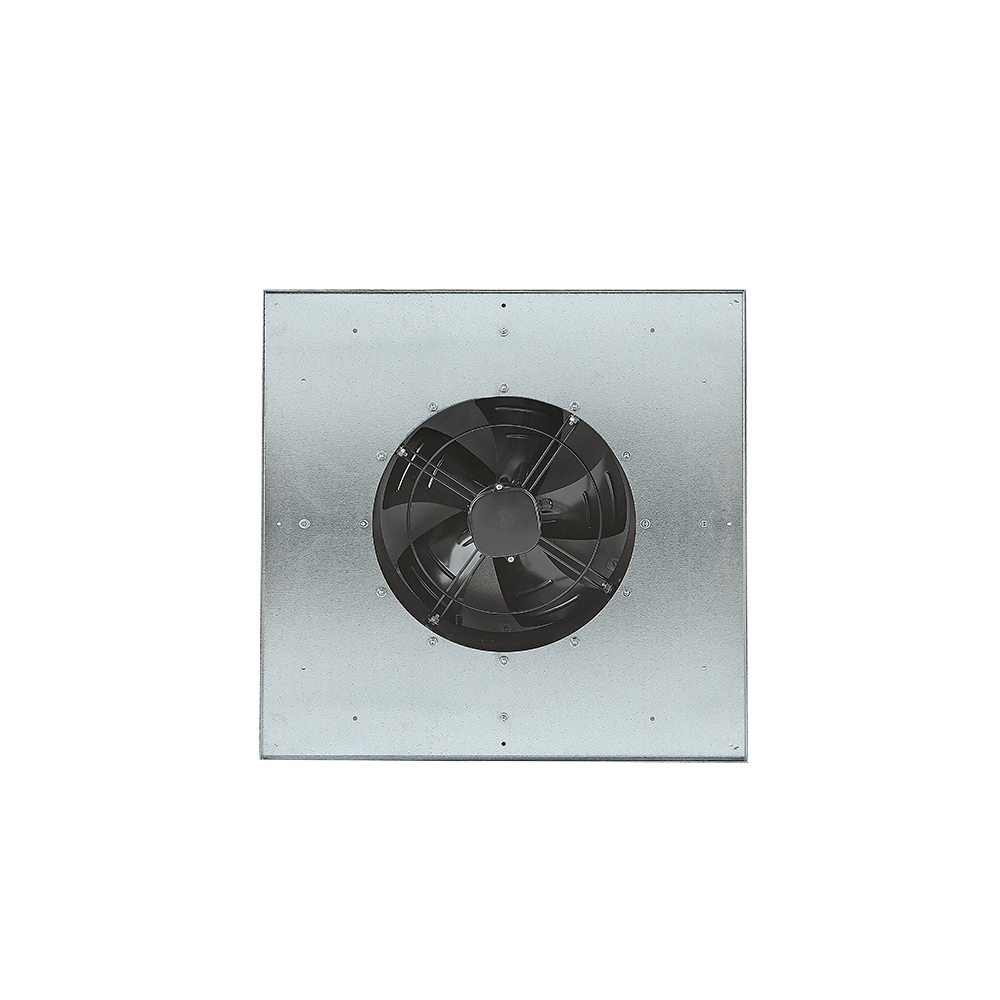

Roof fans BLAST series
The BLAST series roof fan is used to remove used air from a room with dust content not exceeding 0.3 g / m³. It is intended for external use on building roofs. Thanks to the specially designed fan impeller blades, air is drawn in from the axial direction and discharged radially outside the building. The device has a casing made of powder-coated galvanized steel, thanks to which it is resistant to unfavorable external conditions.
Product description: Roof fans BLAST series
Place to use
The roof fan is designed for installation on the roofs of facilities such as:
- production halls,
- warehouses,
- logistics centers,
- garages,
- commercial pavilions,
- sports halls.
Parameters
Maximum air flow: 2300 – 4400 m3 / h
Weight: 35 – 50 kg
Working temperature: -20°C to +60°C
Motor rated current: 0.98 – 2.1 A
Housing: powder coated galvanized steel
Additional information:
- The offer includes dedicated mounting accessories.
Control
The control of the device is possible thanks to the dedicated automation for the BLAST series. Possible integration of the device with the mixing chamber.
Benefits
- durable construction of the device,
- modern design,
Technical specification
| BLAST 400 | BLAST 450 | BLAST 500 | |
|---|---|---|---|
| Product code | BLAST-400AC-2082 | BLAST-450AC-2083 | BLAST-500AC-2084 |
| Maximum airflow [m3/h] | 2300 | 3700 | 4400 |
| Voltage/frequency [V/Hz] | 230/50 | 230/50 | 230/50 |
| Nominal motor current [A] | 0,98 | 1,7 | 2,1 |
| Nominal motor speed [rpm] | 1380 | 1380 | 1380 |
| Nominal motor power [W] | 205 | 370 | 500 |
| IP protection rating of motor | 54 | 54 | 54 |
| Operating temperature [°C] | -20 - 60 | -20 - 60 | -20 - 60 |
| Weight [kg] | 35 | 42 | 50 |
| Noise [dB] | 66 | 68 | 70 |
